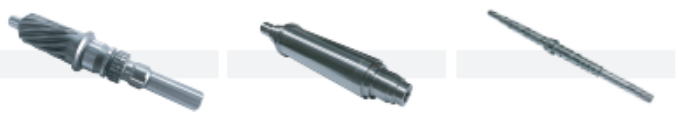

Typical processed parts

Main features of the machine tool

■ Closed-loop automatic grinding work cycle
■ Zhongyuan Precision's automatic measuring instrument
■ Configured electrical cabinet
■ Automatic quantitative lubrication
■ Fully enclosed protective cover

Machine tool configuration

■ Suitable for mass production of shaft parts, grinding end faces and outer circles simultaneously in one go. Under the condition that the width of the grinding wheel is satisfied, multiple steps and end faces can be ground at once, achieving profile grinding. The more complex the shape of the part, the more the advantages of this machine tool can be reflected. Under permissible conditions, one person can operate multiple machines.
■ Uses the HNC-808DG two-axis linkage system from Wuhan Huazhong CNC Co., Ltd. (other CNC systems can also be configured according to user requirements).
■ Configured with Zhongyuan Precision's automatic measuring instrument for online measurement, achieving a closed-loop automatic grinding work cycle to ensure processing size accuracy. Combinations can be made according to specific user requirements (other measuring instruments can also be configured according to user requirements).
■ Configured with an independent electrical cabinet (with air conditioning) and an independent oil tank.
■ The tailstock uses precision ball bearings for linear motion and has pneumatic retractable functions.
■ The headstock spindle and tailstock spindle use #4 Morse.
■ Configured with an automatic quantitative lubrication pump to ensure sufficient lubrication of the screw.
■ The configured protective cover is fully enclosed to ensure safe operation.
■ Configured with a larger water tank and magnetic separator or paper filter.

Grinding wheel holder

■ Grinding wheel holder feed
The grinding wheel holder feed and worktable feed are driven by AC servo motors through ball screws, with ball screws from Taiwanese brands (other brands can also be configured according to user requirements).


■ Guide rail
The grinding wheel holder and worktable guide rails use plastic-coated guide rails to improve their shock resistance and sensitivity.


■ Grinding wheel holder spindle
The grinding wheel holder spindle can use dynamic and static pressure, static pressure, or direct drive electric spindle.
